Reimagining the Double-Slit Experiment
Physicists in Japan have performed a version of the double-slit experiment at the atomic scale for the first time. Naoya Shibata and his team at the University of Tokyo used an electron beam to observe interference fringes from atoms within a silicon crystal. This development demonstrates how quantum interference works when the slits are defined by the physical spacing of atomic columns rather than man-made barriers.

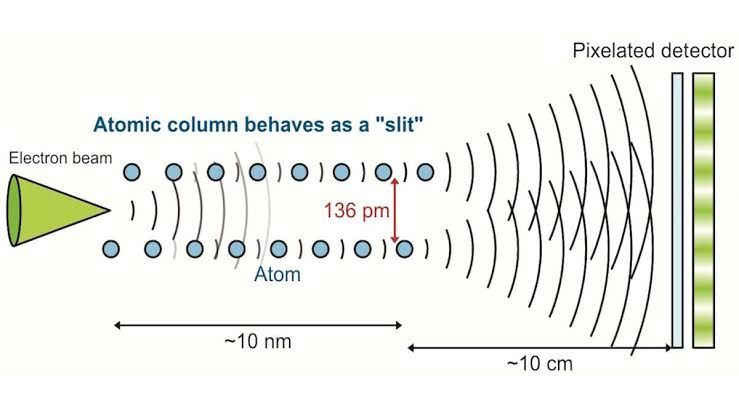

The double-slit experiment remains the most famous demonstration in quantum mechanics. It proves that a single particle acts as a wave that interacts with itself as it passes through two openings at once. Thomas Young performed the initial experiment using light in 1801, with slits spaced about one millimeter apart. The new setup by Shibata’s group places this phenomenon on a scale 136 picometers wide. The researchers used a 4D scanning transmission electron microscope to direct an electron wave precisely across two adjacent silicon atomic columns. These columns served as the dual slits, forcing the electron to scatter in a coherent pattern.
Overcoming Atomic Scale Challenges
Standard crystals present a difficulty for this type of measurement because they contain many repeated unit cells. These cells usually wash out any distinct interference signal from a single atomic pair. By targeting a pure silicon crystal at a specific orientation, the Tokyo team isolated the interaction to just two columns. The electron wave overlapped those specific points and no others. This allowed the team to record interference fringes that are seven orders of magnitude smaller than those in the original 19th-century experiment.
Surprisingly, the interference remained visible at temperatures between 300 K and 900 K. In typical experiments, random thermal motion of atoms destroys coherence. In this case, the researchers discovered that the atomic columns moved in a correlated fashion. Because the columns vibrated in sync, the interference pattern was preserved. This behavior differs from a classical interpretation where uncorrelated motion leads to a loss of the wave pattern. The relative motion of the atoms actually provided a way for the researchers to track how individual pairs of atoms interact with one another.
Future Implications for Thermal Management
This experiment offers more than a technical milestone in quantum observation. It provides a method to measure phonon correlations directly between single pairs of atoms. Understanding these vibrations at the level of individual atomic bonds is critical for future technology development. Interfaces and defects in materials often dictate how heat flows through a device. By examining these dynamics at the atomic scale, researchers hope to design better thermal management for microchips.
The findings suggest that atomic-scale interferometry will become a tool for mapping local lattice dynamics. Previous methods lacked the resolution to see how individual bonds behave in response to thermal changes. As chip components shrink, the industry requires this level of detail to prevent overheating and maintain efficiency. Shibata and his team have moved beyond mere observation of quantum phenomena toward a practical application for material science. The team published their results in the journal Nature, marking a shift toward using the crystal lattice itself as a diagnostic instrument for its own thermal properties.
