Advancing Magnet Technology for Fusion Power
A Japanese manufacturing partner recently completed a successful test of a specialized superconducting magnet, marking a shift toward viable commercial fusion energy. The test magnet, built using a proprietary architecture known as UROCOIC, sustained a 40 kiloampere electric current without failure. The acronym stands for Unitized Reinforcing Outer Cover On Internal Components.
Stellarator reactors rely on precise magnetic fields to contain plasma heated to extreme temperatures. These machines require superconducting coils with complex three-dimensional shapes. Maintaining mechanical stability under the intense electromagnetic forces present inside these reactors is a significant hurdle for engineers. The UROCOIC design addresses this by placing an external metal jacket over the internal superconducting tapes to absorb physical stress and prevent cracks.
The Engineering Behind the Test

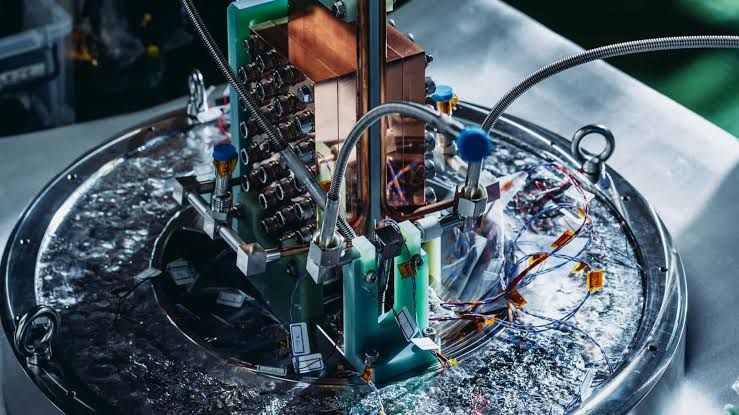

Researchers from Helical Fusion and the National Institute for Fusion Science conducted the evaluation inside a controlled cryogenic chamber. They cooled the system to 10 Kelvin and operated it at temperatures reaching 30 Kelvin. This is roughly -405 degrees Fahrenheit. The setup applied a background magnetic field of 7 Tesla, resulting in a maximum field of 8.9 Tesla on the test magnet itself.
A key aspect of this coil design is the absence of traditional electrical insulation between its layers. In standard magnet construction, insulation can trap heat, which leads to a system failure known as a quench. By leaving the coil uninsulated, the team allowed heat and excess current to bypass potential hot spots. This ensures the system remains stable during operation.
The test coil handled physical forces of 356 kilonewtons per meter generated by the interaction of the current and the magnetic field. The system performed without losing its superconducting state or experiencing a quench. The results provided data on how electrical currents adjust inside the winding during rapid changes in the external magnetic field.
Future Implications for Fusion Energy
This experiment offers direct evidence that the UROCOIC conductor can withstand the forces present inside a functional fusion device. Helical Fusion plans to integrate this technology into its upcoming experimental machine, the Helix HARUKA. This project is part of a broader effort to achieve consistent, high-output fusion energy.
If tests on the HARUKA machine meet performance targets, the firm intends to scale the conductor for use in the Helix KANATA. That project is a full-scale commercial fusion power plant scheduled for the 2030s. The recent verification also coincides with the project passing an official review under Japan’s MEXT SBIR Phase 3 program.
Junichi Miyazawa, the Co-Founder and Vice CTO at Helical Fusion, stated that the company remains focused on advancing the Helix Program. The goal is to bring the industry closer to the first commercially viable fusion power plant based on the Helical Stellarator. As these teams move from lab-scale tests to larger machines, the performance of these magnets will dictate the pace of fusion development globally. Watching the data from the HARUKA tests will be the next step for those following the energy sector.
