Breakthrough in Solid-State Cooling Technology
Researchers at the Karlsruhe Institute of Technology and the University of Tsukuba have developed a new elastocaloric cooling system that operates without electricity. The prototype uses heat to drive shape memory alloy (SMA) films, providing a pathway for cooling technologies that do not rely on vapor compression. This development addresses the substantial global energy demand driven by traditional cooling systems, which currently account for nearly half of all global energy use. By utilizing low-grade heat, this technology offers a practical method for thermal management in miniaturized electronics.

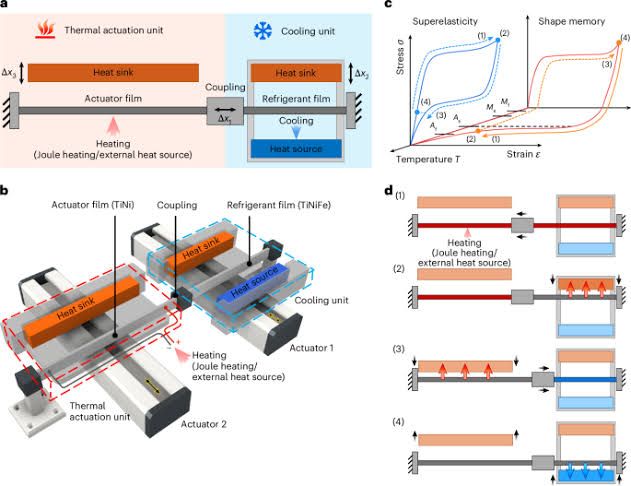

The system utilizes a two-part mechanical design. One unit acts as a thermal actuator, while the other serves as the cooling unit. The actuator, constructed from a 22-micrometer-thick TiNi film, uses the shape memory effect to generate force when heated. This motion is then transferred through a polymer connector to a 26.5-micrometer-thick TiNiFe superelastic refrigerant film. Because the films are extremely thin, they possess a large surface-to-volume ratio, allowing for rapid heat transfer. This design eliminates the need for volatile refrigerants or bulky compressors, making it suitable for confined spaces.
Testing the Prototype Performance
To evaluate the system, the team conducted tests using both Joule heating and an external heat source. In the Joule-heated configuration, the actuator reached peak temperatures of 86 degrees Celsius. The device achieved a material-level temperature span of 12.9 Kelvin and a device-level span of 4.0 Kelvin. The system demonstrated continuous cyclic operation, maintaining these spans over several dozen cycles without degradation. The force-to-displacement ratio for this SMA-based actuator was measured at 14.5 Newtons per millimeter, which significantly outperforms conventional electromechanical actuators that provide only 1.1 Newtons per millimeter.
The researchers further verified the concept by replacing the electric heater with an external solid heat source maintained at 130 degrees Celsius. This configuration successfully drove the elastocaloric cooling cycle, achieving a device-level temperature span of 2.2 Kelvin. While the performance in this heat-driven mode was lower than the Joule-heated version, it successfully confirmed that waste heat can effectively power the cooling cycle. These results highlight the ability of SMAs to convert thermal energy directly into mechanical work for cooling purposes.
Future Implications for Energy Systems
This technology holds potential for diverse applications beyond laboratory testing. In household electronics, the device could be integrated into central processing units to manage heat by harvesting waste energy from voltage regulators. Automotive systems represent another potential area of integration, where exhaust or drivetrain heat could power localized cooling for sensitive electronics. Scaling these systems requires careful management of heat-transfer interfaces and uniform stress distribution across multiple films to maintain performance.
While the current cooling power remains limited by the small mass of the thin-film refrigerant, modular integration provides a clear strategy for increasing total output. By parallelizing film arrays and optimizing the thermal coupling, future versions of this device could offer a robust alternative to current cooling methods. The team plans to refine the actuator geometry and investigate fatigue-resistant alloy compositions to extend the operational lifetime of these systems. As the industry seeks to minimize its reliance on fossil-fuel-generated electricity, such solid-state approaches provide a necessary path toward efficient, decentralized cooling.
