A New Frontier in Photonic Hardware
Researchers at Tsinghua University have developed a monolithic photonic computing architecture that performs all neural network operations within the optical domain. Published in Nature Sensors on August 27, 2026, the FLARE system eliminates the need for external digital electronic interconnections. This breakthrough uses a combination of silicon photonic, electronic, and optoelectronic components fabricated on a single chip. Traditional systems require constant data movement between processors and memory. By integrating memory directly into the photonic neurons, this new chip minimizes latency and energy consumption.

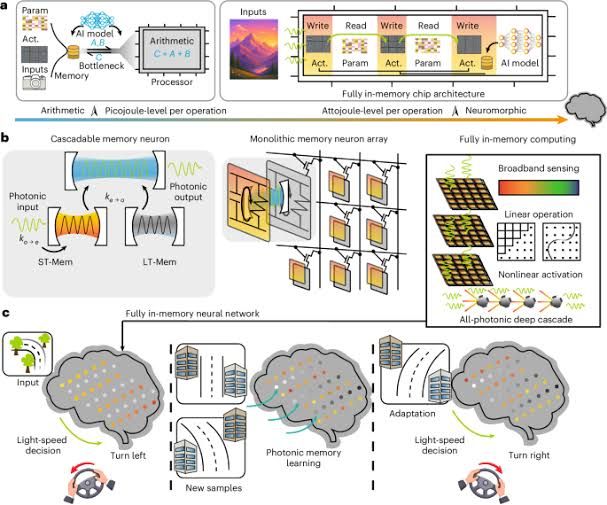

The core of the innovation is the lateral MOSFET, which allows digital functionality to exist directly on the photonic platform. This design supports four distinct computational modes: LT-Mem write, ST-Mem reset, ST-Mem write, and LST-Mem read. The LT-Mem stores persistent states for long-term retention using an integrated parallel-plate capacitor. Meanwhile, the ST-Mem uses a PN-junction modulator to handle high-speed activation. By balancing these two memory types, the chip performs complex operations at speeds unattainable by traditional hardware.
Multicore System Architecture
The team constructed a four-layer neural network using ten interconnected FLARE cores. The architecture utilizes a combination of 2D and 3D cores to manage data flow. The 3D cores perform computations as light signals propagate, while 2D cores handle the final readout stage. To demonstrate the capability of the hardware, the researchers used a first-person view video feed from a racing drone. The network processed the visual data to facilitate navigation in simulated outdoor environments like the CityPark and AirSimNH platforms.
Each layer of the network acts as a modular unit. Input images are split into channels using beam splitters and focused onto multiple cores. As the signals pass from layer one to layer four, the architecture performs automatic downsampling. This spatial downsampling strategy reduces the size of the signal from 38x66 pixels down to 9x16 by the time it reaches the third layer. By moving the processing entirely to the optical domain, the researchers avoided the bottleneck of digital switching typically seen in GPU-based acceleration.
Implications for Future Compute
This technology targets the physical limits of current semiconductor scaling. With Moore's Law slowing, research has turned toward hardware that maps more directly to the requirements of deep learning. The FLARE chip represents a transition from single-core photonic experiments to a multicore system capable of end-to-end processing. It integrates both the computation and the interconnects, making it a viable candidate for low-power, high-speed machine vision applications in robotics and autonomous navigation.
The energy efficiency of the FLARE system comes from its direct light modulation. Since the neurons bias the ring resonators based on stored charges rather than continuous electronic power, the system operates with lower thermal overhead. The experimental setup used a simple FPGA controller for orchestration, yet the heavy lifting occurred within the photonic layers. Future development will likely focus on scaling the number of neurons and refining the fabrication process to accommodate even more complex layers.
As industrial demand for fast neural network inference grows, the ability to pack processing power into a small, passive photonic footprint offers a clear advantage over traditional circuits. While the team currently focuses on vision tasks for robotics, the monolithic nature of the design could find applications in broader sensor data processing. The work by Tiankuang Zhou, Wei Wu, and Lu Fang establishes a new baseline for what can be achieved when memory and processing reside in the same physical space. Monitoring the commercial viability of these photonic circuits will be the next step for this field of research.
