Mapping the Quantum Behavior of Graphene
Graphene exists as a sheet just one atom thick. Its unique physical structure grants it magnetic and quantum properties that intrigue physicists globally. Recent research from teams in the United States and the United Kingdom identified how physical deformation of this material alters its electrical output. Specifically, microscopic wrinkles in the lattice act as functional components that dictate electron flow.

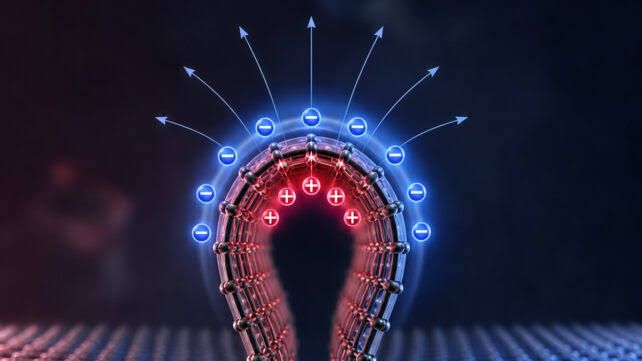

This phenomenon relates to flexoelectricity. In standard physics, this means a material generates an electrical charge when it is bent or physically deformed. While researchers long predicted this behavior in graphene, direct experimental evidence remained elusive until now. Scientists observed that these nanowrinkles serve as speed bumps for electrons, effectively creating localized electrical poles within the material.
The Discovery of Nanowrinkle Electricity
Researchers at Rice University examined graphene samples containing wrinkles smaller than a billionth of a meter. Using conductive atomic force microscopy, they mapped the topography of these folds against their electrical output. The findings, published in Advanced Materials, demonstrate that these bends force electrons to shift toward one side of the wrinkle. This separation of charge creates a structure acting like a tiny battery.
Sathvik Ajay Iyengar led the research effort. He compares the process to bending a standard ruler, but at a scale invisible to conventional microscopes. His team found that the polarization levels within these wrinkles were up to 10 million times greater than what occurs in larger, conventional flexoelectric systems. The sharpness of the bend proved far more critical to the outcome than the overall size of the wrinkle itself.
Future Implications for Nanoelectronics
The ability to reshape electrical behavior through geometry rather than chemistry marks a shift in materials science. Instead of adding chemical impurities to alter conductivity, manufacturers might one day rely on controlled mechanical bending to design electronic components. This method allows for precise control of electricity within atomically thin circuits.
Pulickel Ajayan, a materials scientist at Rice University, notes that common wrinkles transform into notable electronic features when viewed at the atomic level. This discovery provides a new methodology for designing ultra-small sensors and electronic devices. By manipulating the physical curvature of graphene, engineers could build systems that perform specific tasks based entirely on their structural design.
While the current results rely on a combination of direct observation and computer simulations, they represent a significant step in verifying 20-year-old predictions. Further research will focus on scaling these effects for practical applications in technology. As scientists continue to explore the limits of graphene, this structural approach offers a clear path toward next-generation electronic design.
