Mapping Spin Waves at the Nanoscale
Researchers in Europe have developed a novel microscopy technique that observes short-wavelength spin waves, also known as magnons, within magnetic materials. This new method, called magnon momentum microscopy, uses soft X-rays to map how these waves behave in momentum space. By capturing the direction and wavelength of magnons simultaneously, this approach provides a clear window into nonlinear interactions that were previously difficult to measure.
The research, led by Steffen Wittrock, Bastian Pfau, and Daniel Schick, originated from collaborations between the Helmholtz Center Berlin for Materials and Energy, the Max Born Institute for Nonlinear Optics and Short Pulse Spectroscopy, and EPFL in Switzerland. Every ferromagnetic material contains tiny atomic magnets. When nudged, these magnets create a ripple effect known as a spin wave. These waves carry potential for future computing technologies, a field researchers call magnonics. Magnons could theoretically move information with higher efficiency than traditional electrical signals.
The Technical Challenge of Short Wavelengths
Behavior of magnons becomes most significant when their wavelength drops below 100 nanometers. At this scale, dynamics are controlled by short-range quantum exchange interactions rather than long-range forces. Standard tools could not effectively capture these dynamics because they typically probed only one direction at a time. This limitation hindered the study of nonlinear interactions where magnons collide, combine, and split.

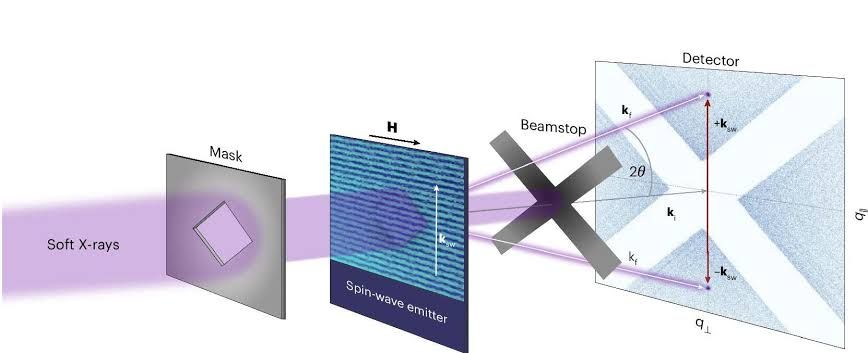

Magnon momentum microscopy overcomes these barriers by using soft X-rays as a probe. When a magnon moves through a material, it creates a temporary imprint on the local magnetization. Tuning the X-rays to a specific wavelength allows them to scatter off this imprint. A detector placed behind the sample records the full scattering pattern in a single snapshot. The team captures each map in approximately 30 seconds, maintaining high sensitivity even at low power levels.
Implications for Future Magnonic Technologies
Testing the technique on yttrium iron garnet, a standard material for magnon study, the team observed four-magnon scattering. This process involves high-amplitude spin waves colliding to generate new waves that spread in multiple directions. The results appeared on the detector as a bright elliptical ring. This ring matched theoretical predictions for spin-wave dispersion, confirming the precision of the new microscopy method.
At higher power levels, the team observed waves appearing at simple fractions of the driving frequency. These fractional harmonics deviate from standard theory, indicating a deeper complexity in nonlinear magnon behavior. This observation opens a new path for research into the physics of these materials. The work, recently detailed in the journal Nature Physics, suggests that scientists can now explore regimes of magnon physics previously considered unreachable.
This technology provides the measurement tools necessary to understand the nonlinear dynamics required for practical magnonic devices. Future research will likely focus on how these interactions can be manipulated to build more efficient signal processors. By mapping the full directional landscape of spin waves in one measurement, the team has provided a new standard for characterizing materials at the nanoscale.
